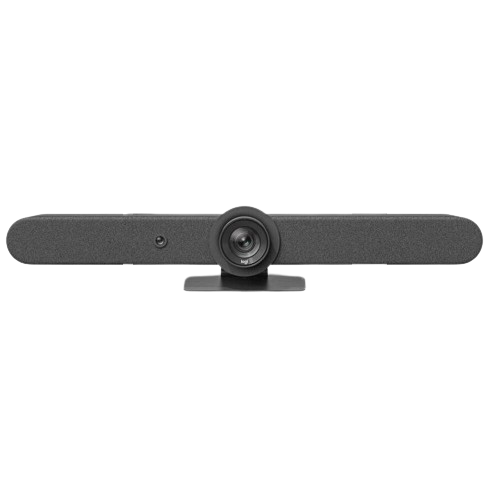

RALLY BAR

RALLY BAR

Logitech Rally Bar is the premier video bar for medium to large meeting rooms. Discover remarkably simple, all-in-one video conferencing with built-in AI technology, brilliant optics, and powerful audio.

Key Features:

EXPAND THE CONVERSATION

Add up to three Rally Mic Pods to extend the audio pick up range and provide convenient access to mute controls.

EVERYONE IS SEEN AND HEARD

AI video intelligence, advanced sound pickup, noise suppression, and continuous software improvements provide a clear and natural meeting experience for remote workers.

MANAGE REMOTELY WITH SYNC

Monitor room and device health, deploy updates, and modify settings, all from a single cloud-based platform.

Download Datasheet
View full details

Technical Specifications

Certifications & Compatibility

  • Microsoft Teams Rooms on Android 1 For small sized rooms
  • Microsoft Teams Rooms on Windows 2 For small sized rooms

General Specifications

  • Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
  • Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
  • Device Management: Logitech Sync
  • Displays Supported: 2
  • Display Resolution: Up to 1080p
  • Network Protocol Support: IPv4, IPv6
  • Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

Camera Specifications

  • Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
  • Pan: Motorized ±25°
  • Tilt: Motorized ±15°
  • Zoom: 15X HD zoom (5X optical and 3X digital)
  • Diagonal Field of View: 90°
  • Horizontal Field of View: 82.1°
  • Vertical Field of View: 52.2°
  • Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical

Speaker Specifications

  • Drivers: 2x 70 mm / 2.7 in
  • Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
  • Rated Power: 8W
  • THD: 1kHz < 2% at 1W
  • Speaker Sampling Rate: 48 kHz
  • Impedance: 4 Ohms

Microphone Specifications

  • Frequency Response: 90Hz – 16kHz
  • Sensitivity: >-36dBFS +/-1 dB @ 1Pa
  • Microphone data rate output: 48KHz
  • Pickup Range: Up to 23 ft (7m)
  • Beamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
  • Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
  • Noise suppression: AI based de-noising algorithm
  • Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms

Compatability

Internet Connection: Wired or wireless

USB Mode: Windows 11, Windows 10, the two most recent versions of macOSAppliance

Mode: Room solution software license (not included)
